Description
Product Details

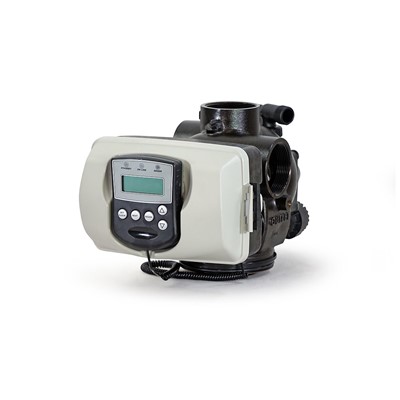

3â₏ top mount or side mount control valve suited for commercial and industrial applications
Epoxy coated lead-free brass valve body
Economical stainless steel optional meter assembly
Service flow rate 250 gpm (946 lpm) (56.8 m3/h), Backwash flow rate 220 gpm (833 lpm) (50.0 m3/h)
Solid-state microprocessor with easy access front removable POD
Modbus TCP/IP capability to communicate with building automation systems
Front panel display for Time of Day, Current Flow Rate, Totalizer and Volume/Days until Regeneration (now with blue backlight)
Four methods to initiate the down ow regeneration; meter delayed, meter immediate, time clock delayed, and pressure differential
Fully programmable regeneration cycle sequences (maximum 9)
Fully programmable regeneration cycle times
Pre or Post treated water regenerant refill
Days override feature; 1-28 days available
Lithium coin cell battery for keeping time of day, limited to life of battery
Level VI 24-volt DC output power supply provides safe and easy installation
Reliable and proven DC drive
One-piece expanding seal spacer stack assembly
Linearly reciprocating piston operation
