CT-80-TA-C1840, #Nelsen 1.25″ C-Series 80K TA,

The â₏œC-Seriesâ₏ control equipped with the â₏œEEâ₏ electronic control board is a 6-cycle control with fully adjustable cycle times delivering controlled backwash, down-flow brining/slow rinse, second backwash, fast rinse, refill and down-flow service with flow rates of 34 gpm and backwash capabilities of 32 gpm. Four methods to initiate regeneration; meter immediate, meter delayed, time clock delayed or pressure differential. A coin cell lithium battery offers back-up with a 8 hour carry over. The 12-volt output AC adapter provides safe and easy installation. Reliable and proven DC drive. Economical stainless steel optional meter assembly.

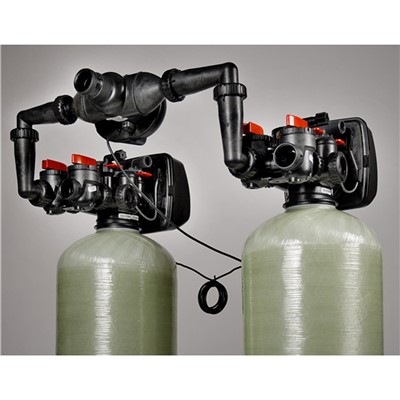

80,000 grain system includes (2) Nelsen â₏œC-Seriesâ₏ 1™Ľ" electronic metered valves, 1™Ľ" Motorized alternationg valve, 1™Ľ"/1™˝" PVC straight tube adapters, bypass valve, black or natural polyglass mineral tanks, standard mesh resin, bypass valves and vertical adapter kits for interconnecting piping.
18â₏x40â₏ blow molded black brine tank with Clack 484 safety valve and air check.
