Description
PIONEER OX (ATOMUS MD1)

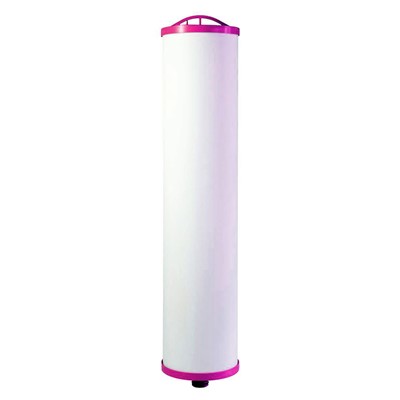

PIONEER OX cartridge filter for use with NFS-HF-BYPASS cartridge tank features ATOMUS MD1, a proprietary filtration media specifically designed to simultaneously oxidize and adsorb organic and inorganic contaminants along with heavy metals that could be present in water. This patented media does not add residuals to the water stream or create harmful disinfectant byproducts.Ă‚Â With fast kinetics and EBCT (empty bed contact time) from 1-5 minutes, PIONEER OX can remove from water many difficult contaminants, including but not limited to:Ă‚Â Ă‚Â Hydrogen sulfide, Color/tannin/organics, TOC, Iron, and manganese.
And the potential removal of:Ă‚Â Radium, Phosphate, Silica, Lead, Uranium, Chromium, Copper, Zinc, Arsenic, Legionella, Iron bacteria, Fluoride, & more.
NSF/ANSI 61 certified and tested to USEPA TCLP and California Wet Tests to provide maximum removal capacity and improved stability against pH upset, preventing possible desorption of bound contaminants during use and in landfill conditions.
APPLICATIONS
Residential, commercial, and industrial applications
Make-up water, RO prefiltration
Cooling towers, chill water loops
Reduction of unwanted bad taste and odor from potable drinking water
Ă‚Â TECHNICAL SPECIFICATIONS
Physical Form: Dry granular media
Adsorption Mechanism: Hydrophobic
Bulk Density: 47 â₏“ 53 lbs/sq.ft.
Surface Loading Rate: (Color/H2S) up to 13 gpm/sq.ft., (inorganics) up to 4.6 gpm/sq.ft.
Service Flow Rate: < 7.5 gpm/cu.ft.
FEED WATER REQUIRE
H2S: Up to 10 ppm
Color/Tannin: < 50 color units
Iron, Ferrous: Up to 3 ppm
Manganese: Up to 2 ppm
pH Tange: 5.5 â₏“ 9.5
Hardness: < 140 ppm
Alkalinity: < 120 ppm
Temperature: 41 â₏“ 140 F
FOR BEST RESULTS
Use with pre- and post-filtration such as pleated filters (orange/yellow series) and carbon blocks (blue series)
